Another texture problem grrrr [message #225855]

Tue, 10 October 2006 05:35

-IC-sniper7
Messages: 23
Registered: October 2004

Karma: 0

Recruit

Ok I
have found out about alpha blending and done it. But the meshes I add them to appear Black in game and in level edit. what the hell am i doing wrong.

Report message to a moderator

Re: Another texture problem grrrr [message #225860 is a reply to message #225855]

Tue, 10 October 2006 06:38

Jerad2142
Messages: 3811
Registered: July 2006
Location: USA

Karma: 6

General (3 Stars)

I will give you a list of things to check. First we will check the Renegade Material editor:
Pass 1 - all settings default
Pass 2 - Ambient is 0,0,0 (RGB) and Diffuse is 0,0,0. And shader is Alpha Blend.
Make sure that the object has VAlpha checked in W3d Tools.

And here is the one that is probably giving you problems:
In the Level Editor, load the level. Then in the lighting menu choose "Compute Vertex Solve" check "Check Occlusion" then click "Ok".

Visit Jerad's deer sweat shop

Report message to a moderator

Re: Another texture problem grrrr [message #225880 is a reply to message #225860]

Tue, 10 October 2006 08:45

-IC-sniper7
Messages: 23
Registered: October 2004

Karma: 0

Recruit

Thanks a lot that really helped.
only another prob popped up.

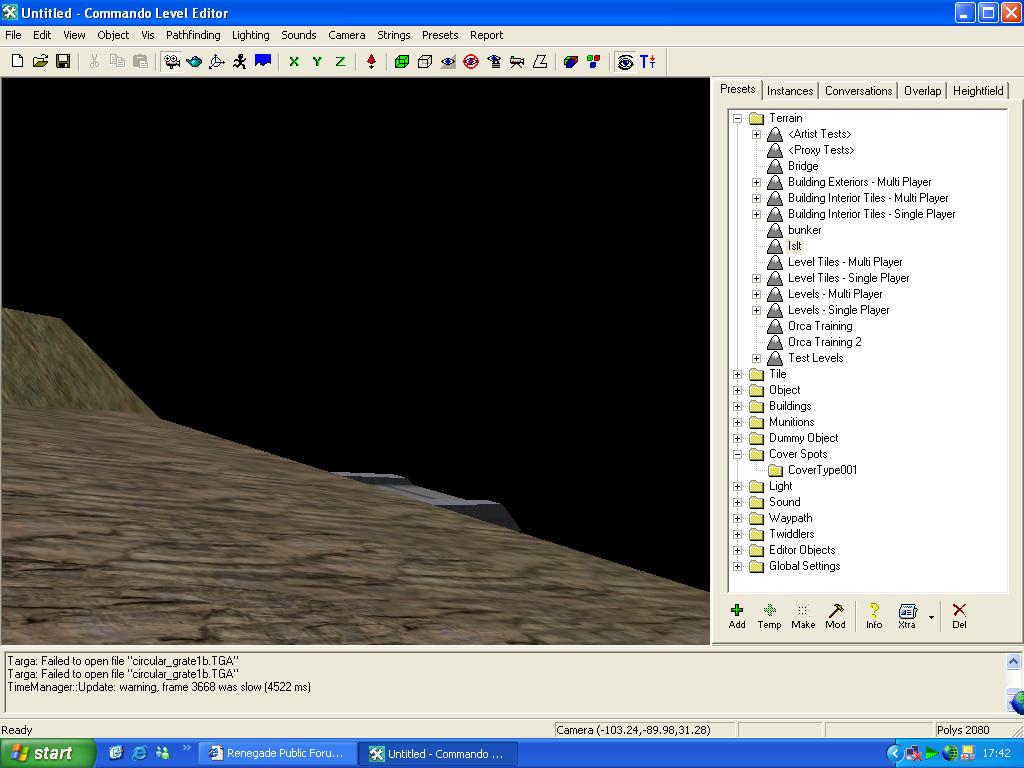

WHATS THIS BLACK BULLSHIT!!!(pic). (can't see it from the other side)

Attachment: Black Bullshit Picture.JPG
(Size: 106.95KB, Downloaded 117 times)

Report message to a moderator

Re: Another texture problem grrrr [message #225899 is a reply to message #225880]

Tue, 10 October 2006 10:50

Jerad2142
Messages: 3811
Registered: July 2006
Location: USA

Karma: 6

General (3 Stars)

Chances are if it can only be viewed from one side that it is a miss placed plane (or any other object if it is so big that the camera goes inside of it), so check renx and see if there are any objects that shouldn't be there (Planes are the hardest to find since from certain views they are not visible and it just looks like a line from above).

Visit Jerad's deer sweat shop

Report message to a moderator

Re: Another texture problem grrrr [message #225911 is a reply to message #225899]

Tue, 10 October 2006 12:20

R315r4z0r
Messages: 3836
Registered: March 2005
Location: New York

Karma: 0

General (3 Stars)

...or maybe he just didn't check "valpha" in the collision settings...

and if you did, then simply in level edit, click on "Lighting" on the top, then click "Compute Vertex Solve" then in that click "Check Occlusion"

then sit back for a few seconds.

[Updated on: Tue, 10 October 2006 12:22]

Report message to a moderator

Re: Another texture problem grrrr [message #226564 is a reply to message #225855]

Fri, 13 October 2006 22:47

Veyrdite
Messages: 1471
Registered: August 2006
Location: Australia, Sydney

Karma: 0

General (1 Star)

which vertex paint did you use, the one in the drop-down menu, the one which you can add to the toolbar or the one in editable mesh?

try using the one in editable mesh (if your not) to aviod topology problems.

WOL: Veyrdite Previously: Dthdealer ( a long time ago )

Report message to a moderator
